What Is a Pressure Balancing Valve?
A Pressure Balancing Valve is a shower control that keeps water temperature steadier when hot or cold water pressure changes. The valve adjusts the flow from each supply line as pressure shifts. This helps reduce sudden temperature changes when another fixture uses water during a shower.
Quick Facts About Pressure Balancing Valve
Category
Shower control valve
Used for
Balancing hot and cold shower water
Common confusion
Often confused with a thermostatic mixing valve
Also called
Pressure Balance Valve, Pressure-Balancing Shower Valve
Often discussed with
Shower Installation
Key Takeaways About Pressure Balancing Valve
- It responds to changes in hot and cold water pressure.
- It helps limit sudden temperature shifts during a shower.
- It is not the same as a thermostatic mixing valve.
How Pressure Balancing Valve Works

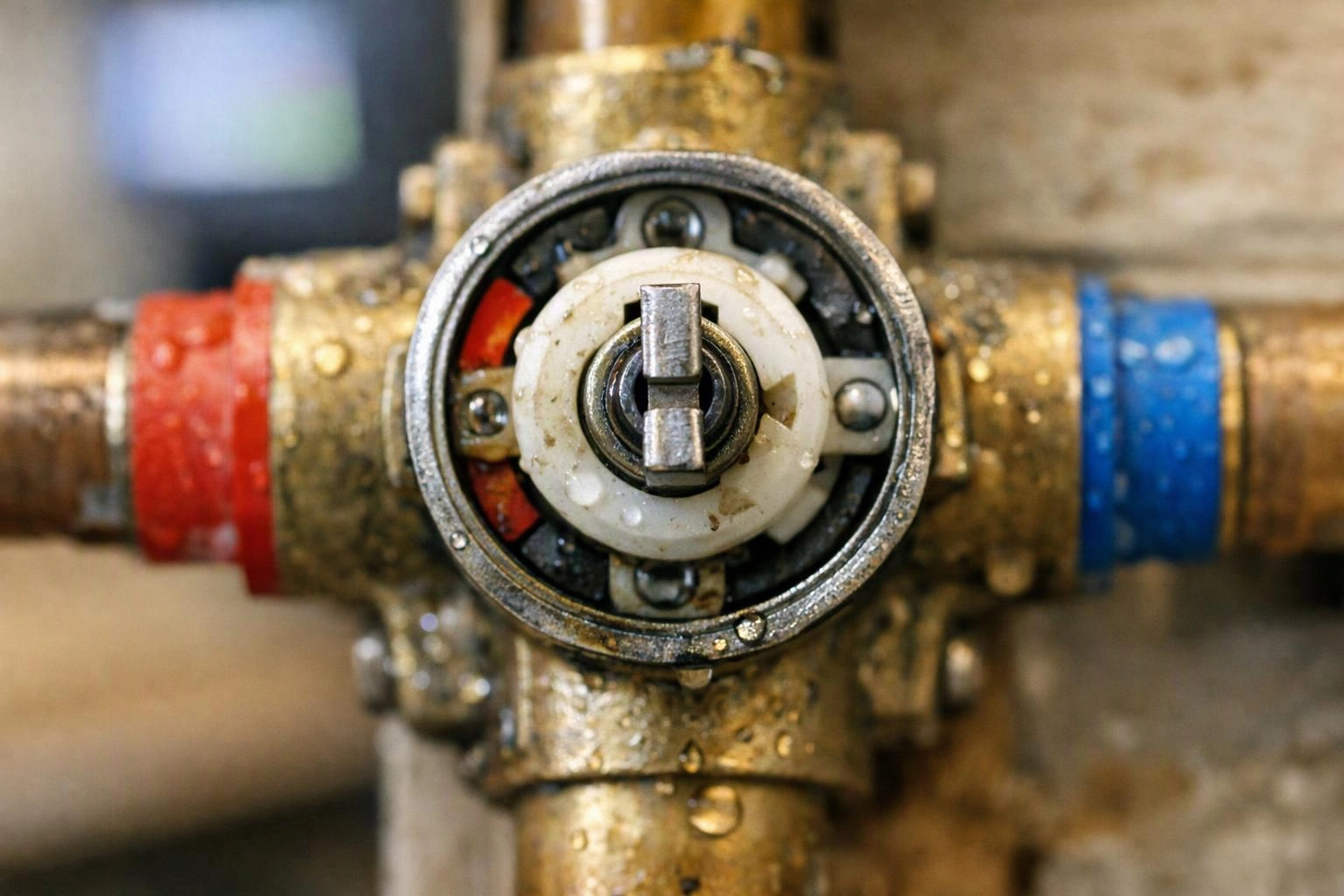

A pressure balancing valve connects to the hot and cold water supplies behind a shower control. A sliding spool or piston senses pressure on both sides. When one side loses pressure, the valve reduces flow on the other side.
Related glossary terms: Thermostatic Mixing Valve, Pressure Reducing Valve, Supply Line.
For example, a toilet filling nearby can lower cold-water pressure. The valve responds by limiting hot-water flow, which helps keep the shower from becoming suddenly hotter. The valve reacts to pressure changes, but it does not set water temperature as precisely as a thermostatic mixing valve.
During shower installation, the valve sits inside the wall and connects to the trim handle and shower outlet. Correct pipe connections and a suitable valve body help the control work as designed.
Expert Note
When we install a shower, we check the valve connections, mounting position, and cartridge fit. We also test the control while other fixtures run, because pressure changes can reveal connection or adjustment problems that normal operation may not show.
Pressure Balancing Valve in Practice: A Real-World Example
A shower installation includes a pressure balancing valve behind the wall. When someone runs a nearby fixture, the valve adjusts the hot-water flow to help limit a sudden temperature change.
